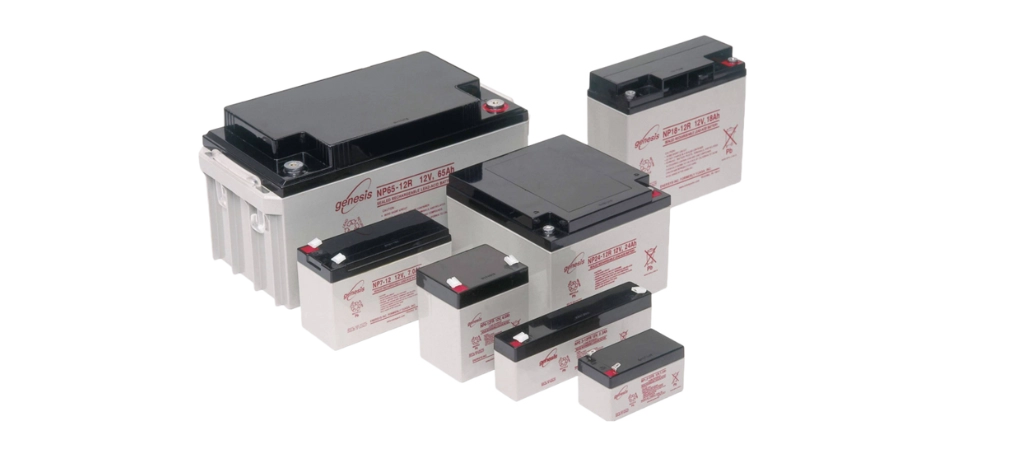

La gama de baterías Genesis® NP y NPX DataSafe® están perfectamente diseñadas para sistemas de respaldo ininterrumpido (UPS) en donde la calidad es un factor importante, diseñadas para sistemas críticos pequeños, medianos y de gran capacidad.
Descargar Ficha Técnica| Voltaje Nominal | 6V y 12V |
| Capacidad nominal C20 rate a 1.75Vpc @ 25°C (77°F) | Desde 1.2Ah hasta 200Ah |
| Tecnología | VRLA (Valvula regulada de plomo-ácido) AGM (Absorbent Glass Mat) |
| Vida útil estimada. | Vida útil esperada de 3-5 años a 77°F (25°C) |
| Aplicaciones | UPS, SAI, IT, telecomunicaciones, seguridad, sensores, sistemas contra incendios. |
| Tipo de batería | Tipo de batería FR* | Voltios (V) |
Capacidad nominal (Ah) tasa C20 a 1.75Vpc @ 25°C |
Longitud (mm) |
Ancho (mm) |
Altura¹ (mm) |
Peso típico (kg) |
| NP1.2-6 | NP1.2-6FR | 6 | 1.2 | 97 | 25 | 56 | 0.30 |
| NP3-6 | NP3-6FR | 6 | 3.0 | 134 | 33 | 67 | 0.69 |
| NP4-6 | NP4-6FR | 6 | 4.0 | 70 | 47 | 105 | 0.80 |
| NP7-6 | NP7-6FR | 6 | 7.0 | 151 | 33 | 100 | 1.25 |
| NP10-6 | NP10-6FR | 6 | 10.0 | 151 | 50 | 101 | 1.73 |
| NP12-6 | NP12-6FR | 6 | 12.0 | 151 | 50 | 101 | 1.92 |
| NP0.8-12 | NP0.8-12FR | 12 | 0.8 | 96 | 25 | 61 | 0.37 |
| NP1.2-12 | NP1.2-12FR | 12 | 1.2 | 97 | 48 | 56 | 0.57 |
| NP2-12 | NP2-12FR | 12 | 2.0 | 150 | 20 | 89 | 0.70 |
| NP2-12-C | NP2-12-CFR | 12 | 2.0 | 182 | 24 | 61 | 0.73 |
| NP2.3-12 | NP2.3-12FR | 12 | 2.3 | 178 | 35 | 67 | 1.01 |
| NP2.9-12 | NP2.9-12FR | 12 | 2.9 | 79 | 56 | 105 | 1.24 |
| NP3.4-12 | NP3.4-12FR | 12 | 3.4 | 134 | 67 | 67 | 1.39 |
| NP4-12 | NP4-12FR | 12 | 4.0 | 90 | 70 | 107 | 1.70 |
| NP5-12 | NP5-12FR | 12 | 5.0 | 90 | 70 | 107 | 1.76 |
| NP7-12 | NP7-12FR | 12 | 7.0 | 151 | 65 | 100 | 2.40 |
| NP9-12 | NP9-12FR | 12 | 9.0 | 151 | 65 | 100 | 2.69 |
| NP10-12 | NP10-12FR | 12 | 9.5 | 151 | 65 | 118 | 3.27 |
| NP12-12 | NP12-12FR | 12 | 12.0 | 151 | 98 | 100 | 3.75 |
| NP18-12 | NP18-12FR | 12 | 17.2 | 181 | 76 | 167 | 5.40 |
| NP22-12 | N/A | 12 | 20.9 | 181 | 76 | 167 | 6.90 |
| NP24-12 | NP24-12FR | 12 | 24.0 | 166 | 175 | 125 | 8.68 |
| NP33-12 | NP33-12FR | 12 | 33.0 | 197 | 131 | 158‡ | 11.39 |
| NP38-12 | NP38-12FR | 12 | 38.0 | 197 | 165 | 172 | 13.53 |
| NP55-12 | NP55-12FR | 12 | 55.0 | 229 | 138 | 207‡ | 18.50 |
| NP65-12 | NP65-12FR | 12 | 65.0 | 350 | 166 | 174 | 22.72 |
| NP75-12 | NP75-12FR | 12 | 75.0 | 259 | 168 | 208‡ | 25.85 |
| NP90-12 | NP90-12FR | 12 | 90.0 | 304 | 168 | 208‡ | 30.17 |
| NP100-12 | NP100-12FR | 12 | 100.0 | 329 | 174 | 214‡ | 32.94 |
| NP120-12 | NP120-12FR | 12 | 120.0 | 407 | 173 | 235 | 38.41 |
| NP150-12 | NP150-12FR | 12 | 150.0 | 483 | 170 | 241‡ | 47.13 |
| NP200-12 | NP200-12FR | 12 | 200.0 | 522 | 260 | 208‡ | 63.60 |
| Tipo de Batería | Tipo de Batería FR* | Voltios (V) |
Vatios/Célula (Wpc) tasa de 15min a 1.67Vpc @ 25°C |
Capacidad Nominal (Ah) Tasa C 20 a 1.75Vpc @ 25°C |
Largo (mm) |
Ancho (mm) |
Altura‡ (mm) |
Peso Típico (kg) |
Distribución | Terminal |
| NPX50-6 | NPX50-6FR | 6 | 50W/Cell | 13 | 151 | 50 | 100 | 2.09 | 1 | C |
| NPX24-12 | NPX24-12FR | 12 | 24W/Cell | 6 | 151 | 51 | 100 | 2.28 | 4 | Neg A/Pos C |
| NPX25-12 | NPX25-12FR | 12 | 23W/Cell | 5 | 90 | 70 | 107 | 1.95 | 1 | C |
| NPX35-12 | NPX35-12FR | 12 | 36W/Cell | 8.5 | 151 | 65 | 100 | 2.75 | 4 | A/C |
| NPX80-12 | NPX80-12FR | 12 | 80W/Cell | 20 | 181 | 76 | 167 | 6.29 | 2 | E |
| NPX100-12 | NPX100-12FR | 12 | 95W/Cell | 28 | 166 | 125 | 175 | 9.70 | 2 | E |
| NPX135-12 | NPX135-12FR | 12 | 135W/Cell | 33 | 197 | 131 | 158‡ | 11.94 | 1 | E |
| NPX150-12 | NPX150-12FR | 12 | 150W/Cell | 40 | 197 | 165 | 172 | 14.29 | 2 | G |
